Petrochemical

Bitumen

Refined petroleum bitumen

Refined bitumen for road construction, waterproofing and industrial applications, supplied in grades and packaging aligned with destination requirements.

Pricing on request

Available forms

Solid BlocksDrumsBulk

Available grades

VG 10VG 20VG 30VG 40

Request a Quote

Product specifications

Product type: Refined petroleum bitumen
Grade: Confirmed with quotation

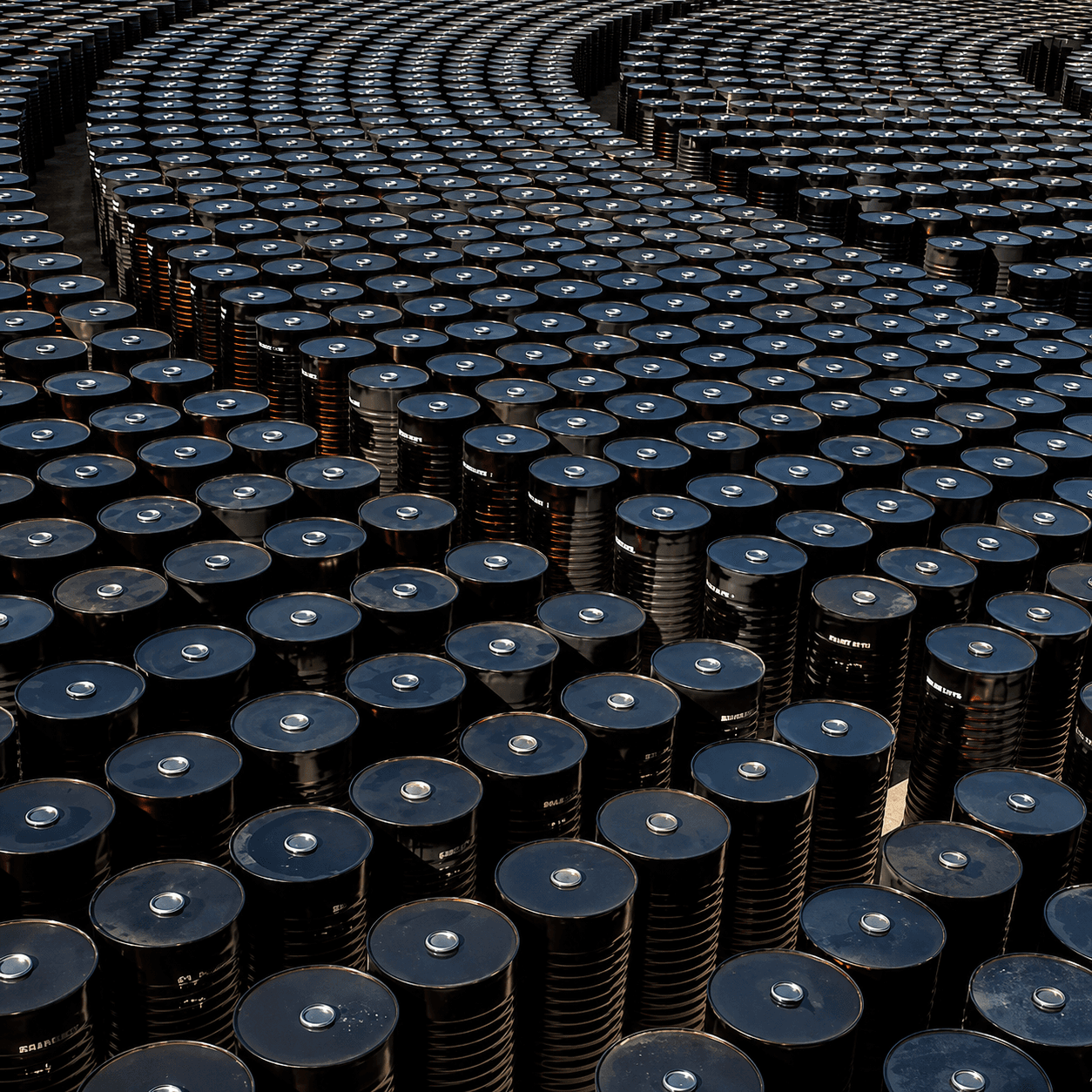

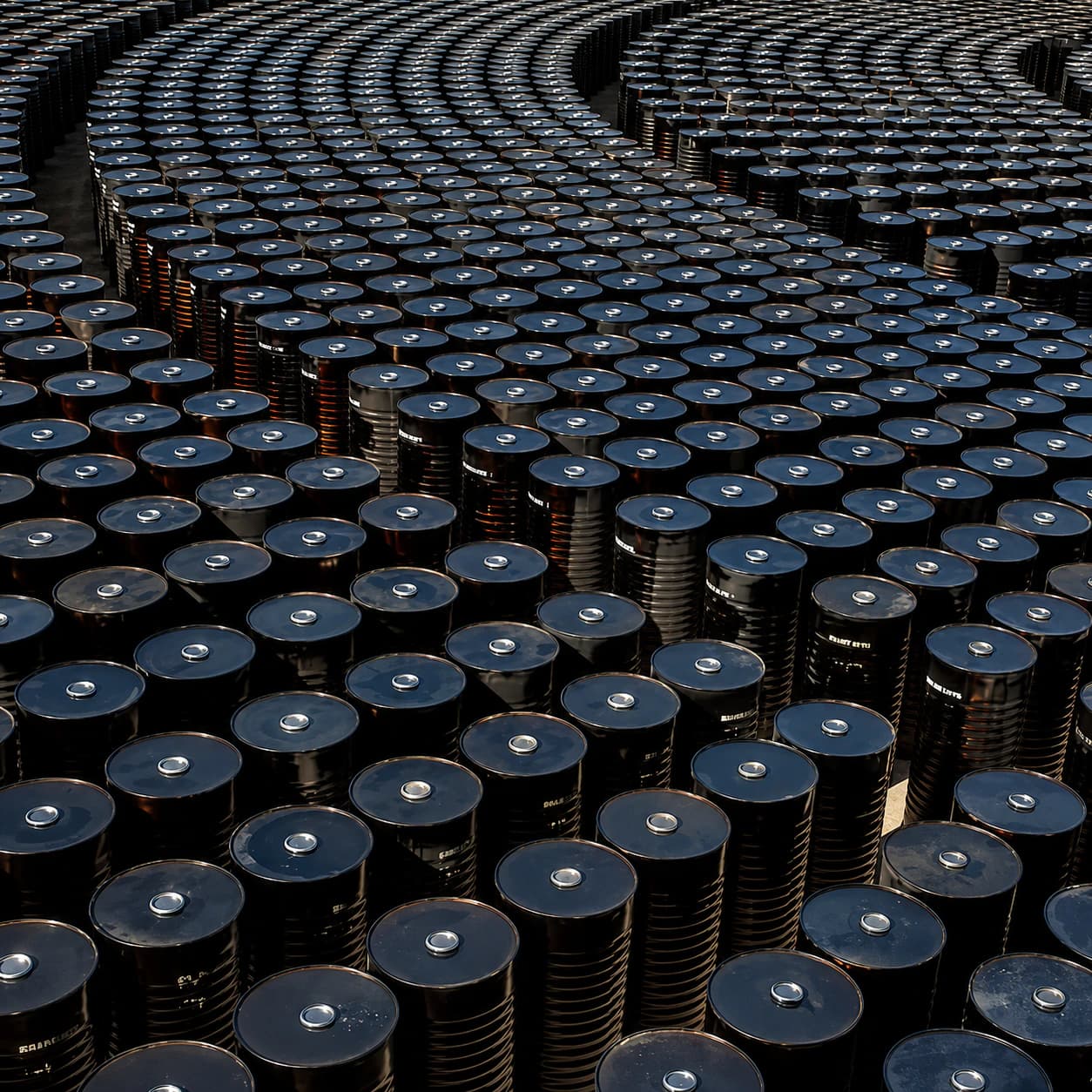

Packaging: Drums, jumbo bags or bulk
Testing: Buyer specification or recognized standard
Origin: Confirmed with quotation

Product highlights

Penetration and viscosity grades
Bulk and drum supply options
Export documentation available

Common applications

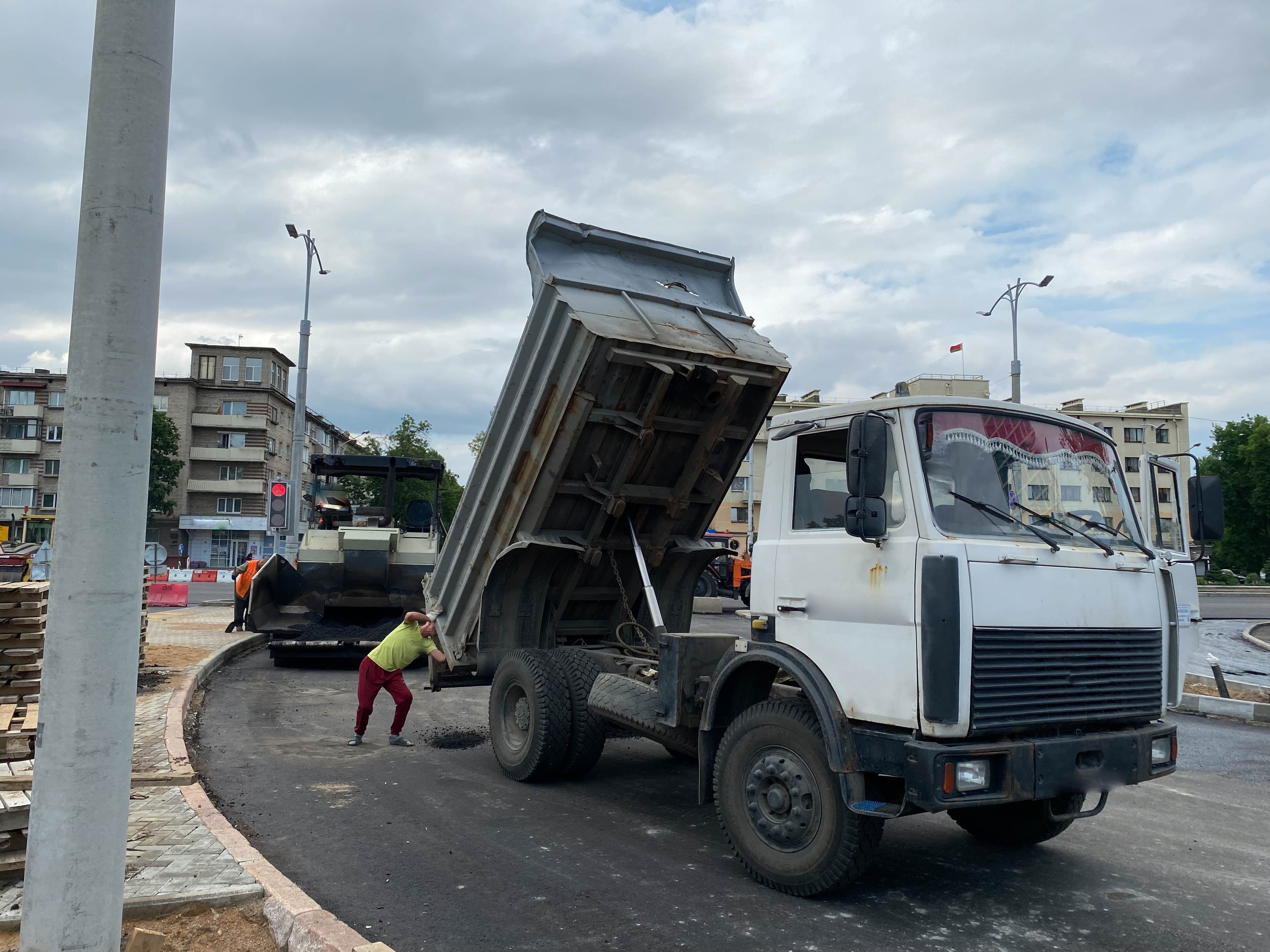

Road paving and asphalt mixes
Waterproofing membranes
Industrial coatings

Technical Reference

Bitumen paving-grade specifications

Comparison of VG 10, VG 20, VG 30 and VG 40 properties for commercial evaluation.

Commercial Overview

High-quality bitumen for road construction, roofing, damp-proofing, reservoir and pool linings, soundproofing and coatings.

HSN Code: 27132000
Material: Natural Bitumen
Grade: VG 10, VG 20, VG 30, VG 40
Color: Black
Supply Ability: 1,000 Metric Tons per month
Minimum Order Quantity: 30 Metric Tons
Payment Terms: T/T — 100% advance

Inside the Process

How bitumen is made

Follow the refinery process from crude-oil distillation and residue preparation through controlled processing, grading and shipment-ready bitumen.

Product Specifications

Characteristics	VG 10	VG 20	VG 30	VG 40	Method of Test
Penetration at 25°C, 100 g, 5 s, 0.1 mm, min	80	60	45	35	IS 1203
Absolute viscosity at 60°C, Poises	800–1200	1600–2400	2400–3600	3200–4800	IS 1206 (Part 2)
Kinematic viscosity at 135°C, cSt, min	250	300	350	400	IS 1206 (Part 3)
Flash point (Cleveland open cup), °C, min	220	220	220	220	IS 1448 (Part 69)
Solubility in trichloroethylene, %, min	99	99	99	99	IS 1216
Softening point (R&B), °C, min	40	45	47	50	IS 1205
Viscosity ratio at 60°C after RTFOT, max	4	4	4	4	IS 1206 (Part 2)
Ductility at 25°C after RTFOT, cm, min	75	50	40	25	IS 1208

Grade Comparison at a Glance

Characteristics	VG 10	VG 20	VG 30	VG 40
Absolute viscosity at 60°C, Poises	800–1200	1600–2400	2400–3600	3200–4800
Kinematic viscosity at 135°C, cSt, min	250	300	350	400
Flash point, °C, min	220	220	220	220
Solubility in trichloroethylene, %, min	99.0	99.0	99.0	99.0
Penetration at 25°C	80–100	60–80	50–70	40–60
Softening point, °C, min	40	45	47	50
Viscosity ratio at 60°C after RTFOT, max	4.0	4.0	4.0	4.0
Ductility at 25°C after RTFOT, cm, min	75	50	40	25

Reference values are provided for preliminary comparison. Final acceptance must follow the agreed purchase specification, applicable standard and shipment-specific certificate of analysis.
